What is a Liquid Crystal Antenna?

 Liquid crystal antenna is a new type of antenna that uses liquid crystal materials to control antenna performance.

The electromagnetic properties of liquid crystal materials, such as the dielectric constant, can be changed in the action of an electric field. In a liquid crystal antenna, the antenna’s frequency, gain, beam direction and other parameters can be dynamically adjusted by applying different voltages to the liquid crystal. For example, in 5G communications, liquid crystal antennas can be used to quickly and flexibly make adjustments based on different frequency band requirements and signal coverage direction requirements, thereby enhancing communication effects.

What are the application scenarios of liquid crystal antennas?

Liquid crystal antennas have a wide range of applications, mainly including the following aspects:

Mobile communications :

Base Station Antenna : In 5G base stations, liquid crystal antennas can achieve flexible beam control. According to the the distribution and communication needs of different areas users, the direction, width, gain and other parameters of the beam can be dynamically adjusted to improve the signal coverage and communication capacity of the base station.

For example, in densely populated cities, the beam can be focused on areas with dense users to provide better signal quality. In remote areas, the signal coverage can be expanded by adjusting the beam direction.

Mobile terminal devices : In the future, mobile terminal devices such as smart phones and tablet computers may adopt liquid crystal antenna technology. Liquid crystal antennas are thin, light and can be integrated, so they can be easily embedded in mobile devices. They can also automatically adjust the performance of the antenna according to different usage scenarios and signal environments. Thereby improving the communication performance and signal reception capabilities of mobile devices.

Satellite communications field :

Satellite ground terminal : Liquid crystal antenna provides a low-cost, high-performance antenna solution for satellite ground terminals. It can replace the traditional dish-shaped satellite antenna, has the advantages of light and flat appearance. It can track satellites without motor devices, and low power consumption. It is very suitable to be used in mobile satellite communication scenarios, such as vehicle-mounted satellite communication, ship-mounted satellite communication, etc.

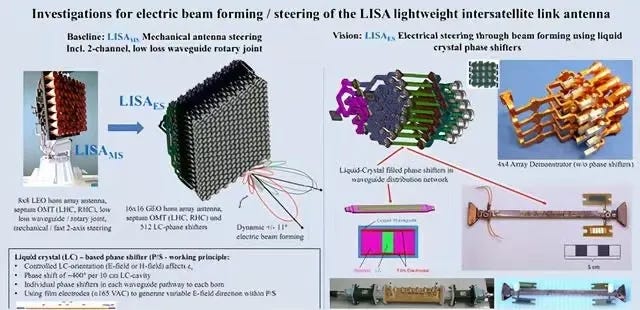

Inter-satellite communication : In satellite constellation systems, high-speed and stable communication is required between satellites. The beam controllability and good RF performance of liquid crystal antennas enable them to meet the high requirements of inter-satellite communication for antennas and ensure the quality of communication links between satellites.

In-vehicle radar field : The car’s autonomous driving and advanced driver assistance systems (ADAS) require high-performance radar sensors to perceive the surrounding environment. Liquid crystal antennas can be used in vehicle-mounted millimeter-wave radars. It can improve the detection accuracy and resolution of radars by precisely controlling the direction and shape of the beam, enhance the car’s ability to identify surrounding objects, and provide more accurate environmental information for autonomous driving and ADAS systems.

Smart home field : In smart home systems, various smart devices need to communicate and connect to network wirelessly. Liquid crystal antennas can be integrated into smart home devices, such as smart TVs, smart speakers, smart home appliances, etc., It can provide stable and efficient wireless communication connections for these devices. At the same time, the adjustability of liquid crystal antennas can automatically optimize communication performance according to changes in the home environment, improving the overall performance and user experience of the smart home system.

Aerospace : In aerospace equipment such as aircraft and satellites, there are strict requirements for the weight, volume and performance of antennas. The light weight, miniaturization and high performance of liquid crystal antennas make them very suitable for use in the aerospace field. For example, on aircraft, liquid crystal antennas can be used in aircraft communication, navigation and radar systems to improve aircraft flight safety and communication efficiency. On satellites, liquid crystal antennas can be used as satellite communication antennas to achieve high-speed communication between satellites and ground stations.

To learn more, click here!
