Components Involved in a TFT Display

 Thin-Film Transistor (TFT) displays are widely used in modern electronic devices such as smartphones, tablets, monitors, and televisions. These displays are known for their high image quality, fast response times, and energy efficiency. The functionality of a TFT display relies on a combination of several key components, each playing a critical role in the overall performance of the display. Below is an overview of the primary components involved in a TFT display:

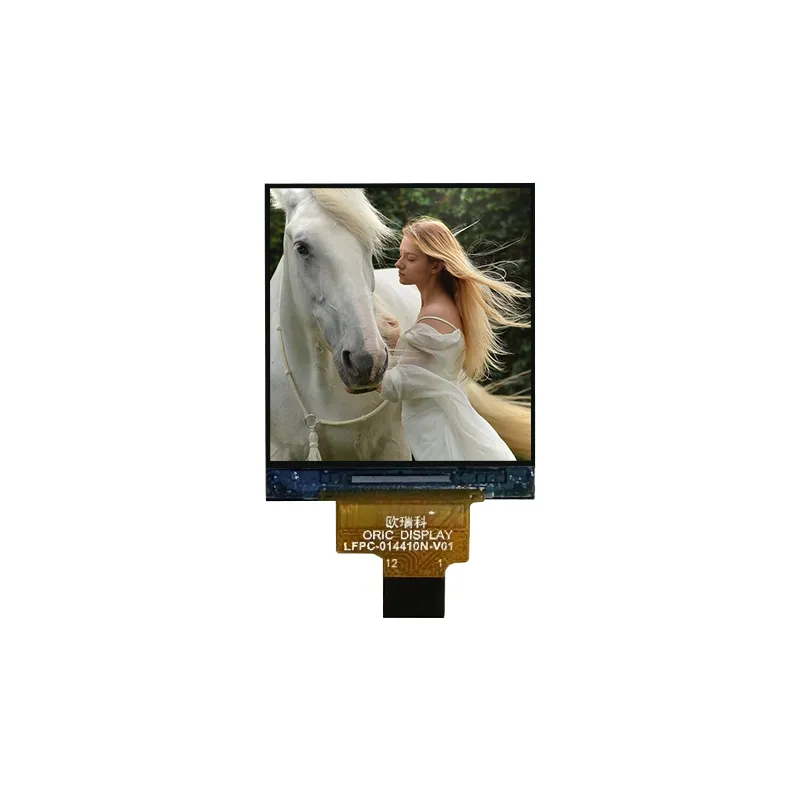

Components Involved in a TFT Display

1. TFT Array

The TFT array is the core component of the display, consisting of a grid of thin-film transistors. Each transistor acts as a switch, controlling the voltage applied to individual pixels. The TFT array is typically fabricated on a glass substrate using semiconductor materials such as amorphous silicon (a-Si), low-temperature polysilicon (LTPS), or metal oxides (e.g., indium gallium zinc oxide, IGZO).



2. Liquid Crystal Layer

The liquid crystal layer is sandwiched between two layers of glass and is responsible for modulating light to create images. The orientation of the liquid crystal molecules changes in response to the electric field generated by the TFTs, allowing light to pass through or be blocked. This layer determines the display's contrast, brightness, and color accuracy.



3. Color Filters

Color filters are placed over each pixel to produce the red, green, and blue (RGB) subpixels that combine to create full-color images. These filters are typically made of dyed or pigmented materials and are aligned precisely with the TFT array to ensure accurate color reproduction.



4. Backlight Unit (BLU)

In LCD-based TFT displays, a backlight unit is required to illuminate the screen. The BLU typically consists of LED (light-emitting diode) arrays and light guides that distribute light evenly across the display. In OLED (organic light-emitting diode) TFT displays, however, the backlight is unnecessary, as each pixel emits its own light.



5. Polarizers

Polarizers are optical filters placed on the outer surfaces of the display. They control the polarization of light entering and exiting the liquid crystal layer, ensuring that the display can produce clear and sharp images. Without polarizers, the liquid crystal layer would not be able to modulate light effectively.



6. Driver ICs (Integrated Circuits)

Driver ICs are responsible for controlling the TFT array and managing the signals sent to each pixel. These circuits convert input data from the device's processor into the appropriate voltage levels required to operate the TFTs. Driver ICs are typically mounted on the edges of the display panel or integrated into the TFT array itself.



7. Glass Substrate

The glass substrate serves as the foundation for the TFT array and other layers. It must be transparent, durable, and capable of withstanding high temperatures during the manufacturing process. Advanced displays may use flexible substrates made of materials like polyimide for bendable or foldable screens.



8. Sealant and Spacers

Sealant is used to bond the layers of the display together and prevent contamination from dust or moisture. Spacers are tiny particles or structures that maintain a consistent gap between the glass layers, ensuring uniform performance across the display.



9. Touch Sensor (Optional)

In touchscreen TFT displays, a touch sensor layer is added to detect user input. This layer can be based on capacitive or resistive technology and is integrated into the display stack or placed on top of the screen.



10. Protective Layers

Protective layers, such as anti-reflective coatings and scratch-resistant films, are often applied to the outermost surface of the display to enhance durability and improve visibility under various lighting conditions.



Conclusion

A TFT display is a complex assembly of multiple components working together to deliver high-quality visuals. From the TFT array and liquid crystal layer to the backlight unit and driver ICs, each element plays a vital role in ensuring the display's performance and reliability. As technology advances, these components continue to evolve, enabling thinner, lighter, and more energy-efficient displays for a wide range of applications.
