How TFT Displays Are Manufactured

 Thin-Film Transistor (TFT) displays are a cornerstone of modern electronics, used in devices such as smartphones, tablets, monitors, and televisions. The manufacturing process of TFT displays is highly complex and involves multiple precision steps to ensure high performance, durability, and image quality. Below is an overview of the key stages in the production of TFT displays.

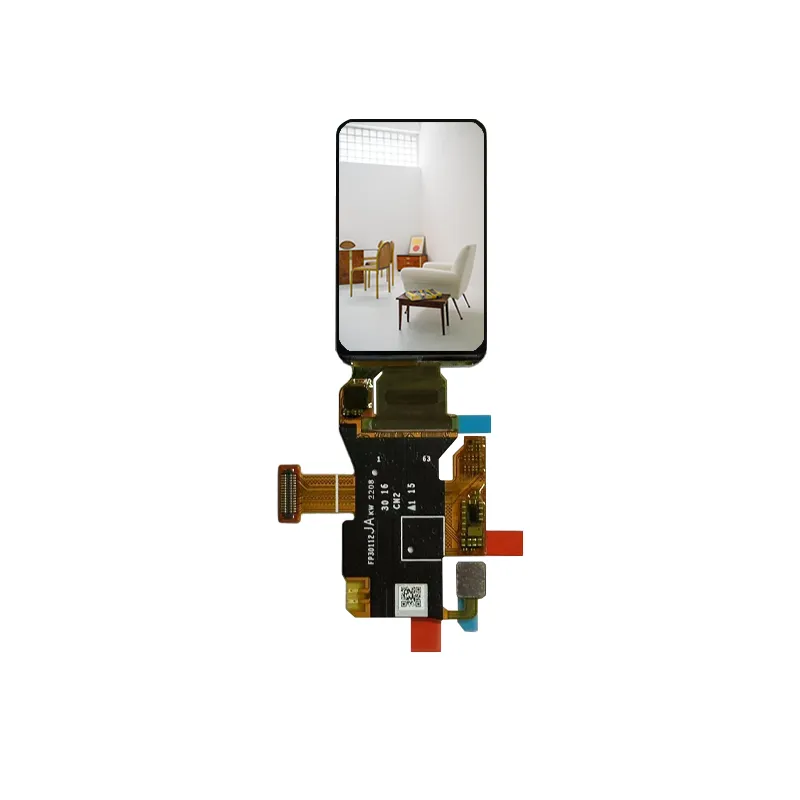

How TFT Displays Are Manufactured

1. Substrate Preparation

The manufacturing process begins with the preparation of the glass substrate, which serves as the foundation for the TFT array. The glass is cleaned thoroughly to remove any impurities, and a thin layer of silicon or metal oxide (e.g., indium gallium zinc oxide, IGZO) is deposited onto its surface. This layer will form the basis for the thin-film transistors.



2. TFT Array Fabrication

The TFT array is created using photolithography, a process similar to semiconductor manufacturing. Here’s how it works:

- Photoresist Coating: A light-sensitive material called photoresist is applied to the substrate.

- Exposure: The substrate is exposed to ultraviolet (UV) light through a photomask, which defines the pattern of the transistors.

-Development: The exposed photoresist is chemically treated to remove either the exposed or unexposed areas, depending on the type of photoresist used.

- Etching: The underlying material is etched away where the photoresist has been removed, leaving behind the desired transistor patterns.

- Layer Deposition: Additional layers of conductive and insulating materials are deposited and patterned to form the transistors, capacitors, and interconnects.

This process is repeated multiple times to build up the complete TFT array.



3. Liquid Crystal Layer Assembly

Once the TFT array is complete, the liquid crystal (LC) layer is added. This involves:

- Alignment Layer Coating:** A thin polymer layer is applied to the TFT array and rubbed in a specific direction to align the liquid crystal molecules.

- Spacer Application:** Tiny spacers are dispersed to maintain a uniform gap between the TFT array and the color filter substrate.

- LC Injection:** The liquid crystal material is injected into the gap between the TFT array and the color filter substrate under vacuum conditions.



4. Color Filter Fabrication

The color filter substrate is manufactured separately and consists of red, green, and blue (RGB) filters arranged in a precise pattern. This substrate is aligned and bonded to the TFT array using a sealant. The alignment is critical to ensure accurate color reproduction and prevent visual defects.



5. Polarizer Attachment

Polarizers are laminated onto the outer surfaces of the display. These optical filters control the polarization of light entering and exiting the liquid crystal layer, enabling the display to produce clear and sharp images.



6. Backlight Unit Integration (for LCDs)

For LCD-based TFT displays, a backlight unit (BLU) is added to provide illumination. The BLU typically consists of LED arrays and light guides that distribute light evenly across the display. The backlight is carefully aligned and attached to the rear of the display panel.



7. Driver IC Attachment

Driver integrated circuits (ICs) are mounted onto the edges of the display panel. These ICs control the TFT array by converting input signals into the appropriate voltages needed to operate the pixels. In some advanced displays, the driver ICs are integrated directly into the TFT array using techniques like chip-on-glass (COG) or chip-on-flex (COF).



8. Touch Sensor Integration (Optional)

For touchscreen displays, a touch sensor layer is added. This layer can be based on capacitive or resistive technology and is either integrated into the display stack or placed on top of the screen. The sensor is connected to a controller that processes touch inputs.



9. Protective Coating and Final Assembly

The display is coated with protective layers, such as anti-reflective and scratch-resistant films, to enhance durability and visibility. The entire assembly is then inspected for defects, and any faulty panels are discarded.



10. Testing and Quality Control

Each display undergoes rigorous testing to ensure it meets performance standards. Tests include checking for uniformity, brightness, color accuracy, touch sensitivity (if applicable), and response time. Defective units are repaired or discarded.



Conclusion

The manufacturing of TFT displays is a highly sophisticated process that combines advanced materials, precision engineering, and cutting-edge technology. From the fabrication of the TFT array to the integration of the liquid crystal layer, color filters, and backlight unit, each step is critical to producing a high-quality display. As demand for thinner, lighter, and more energy-efficient displays grows, manufacturers continue to innovate and refine these processes to meet the needs of modern electronics.
